Network Stretched LCD Display 23.1 Inch For Supermarket Advertising Shelf

Product Categories
Shenzhen Sunchip Technology Co., Ltd.
Contact Now

Network Stretched LCD Display 23.1 Inch For Supermarket Advertising Shelf

Brand Name : Sunchip, ADW

Model Number : ADW-2310

Place of Origin : China

MOQ : 100pcs

Price : negotiable

Supply Ability : 50000 pcs per month

Packaging Details : 1pc/box

Material : Metal

OS : Android 6.0

CPU : RK3128

POE : optional

4G LTE : optional

WIFI&BT : available

Contact Now

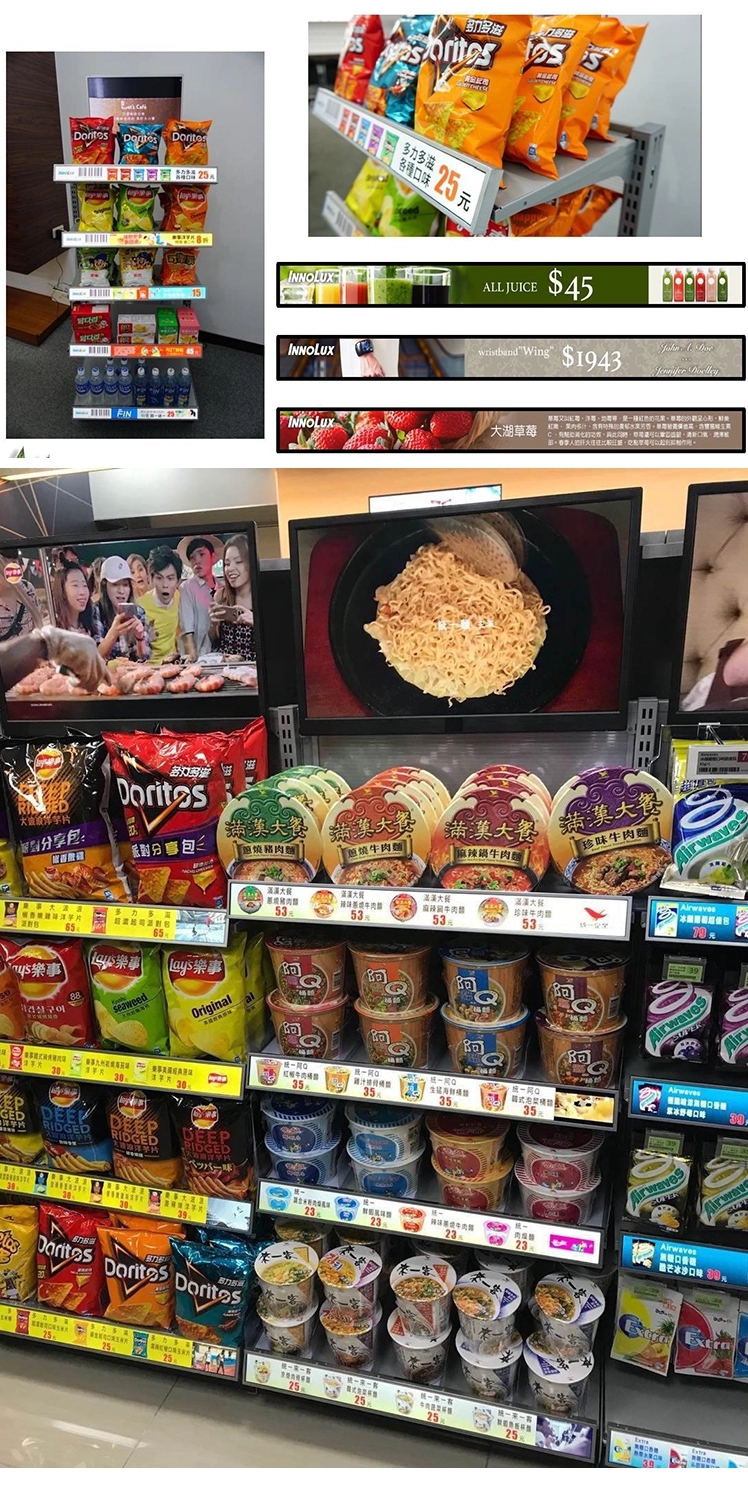

23.1 Inch Stretched LCD Display for Supermarket Network Advertising Shelf Price Label



Sunchip is one of Apple's provider.We have provided advertising screen to Apple.

We are professional manufacturer and designer of LCD digital signage and Android board which was established in 2012,

we have more than 80 engineers focus on Android mainboard's software and hardware R & D, commercial media player/box(support Android and Linux OS), also provide SKD parts for LCD digital signage.



Quick Details

Place of Origin: Guangdong, China (Mainland)

Model Number: CX-ADW2320

Type: TFT

Application:I ndoor

Viewing Angle: 89/89/89/89

Pixel Pitch: 0.4845(H)*0.4845 (V)

Color: 16.7M

Contrast Ratio: 5000:1

Brightness: 600cd/m2

Response Time: 8ms

Input Voltage: AC100~240V 50 /60 HZ

Warranty: 1 Year

Material: metal

Size: 23.1 inch

CPU: RK3188

RAM: 1GB

ROM: 8GB, 16GB, 32GB is optional

OS: Android 5.1

WIFI: WIFI IEEE 802.11 b/g/n

Max Resolution: 1920*540

Panel Size: 23.1 Inch



Packaging Details

Packing
1. Packing in carton and wooden.
2. As customer demand.
3. Shipping port: Shenzhen, Guangzhou.
4. Shipping: by sea, by air and by express delivery.



System CPU RK3128 quad-core Cortex-A7 @1.2G GPU Mali - 400MP2
RAM DDR3 1GB/2GB (optional) , default: 1GB
Internal memory EMMc 8GB/16GB/32GB(optional),default: 8GB
Operation system Android 6.0
  Touch screen default: none
Display Panel 23.1"
Resolution 1920*158P
Contrast ratio 5000:1
Luminance 600 nits
viewing angle 178(H/)178(V)
Pixel Pitch 0.4845(H)*0.4845 (V)
Network WiFi 802.11b/g/n
Buletooth Bluetooth 4.0
Ethernet optional,default: none
Interface USB USB host *2
Mini USB Mini USB OTG
HD optional,default: none
Power jack DC power 12V input
Card slot TF card
RJ45 optional,default: none
speaker 1pc*8Ω 5W
Earphone optional,default: none
Media play Video format MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.
Audio format MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc.
Text processing EPUB, WORD, EXCEL, POWERPOINT, PDF,
E-book PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2
Photo JPG,BMP,PNG

system management		 APK installation APK installation
Root permissions Original ecological Android system, open root permissions, customizable development
Remote control Real-time remote monitoring, system crash self recovery, 7*24 hours unattended
OTA upgrade Support OTA remote upgrades
  Language Multi-language

Network Stretched LCD Display 23.1 Inch For Supermarket Advertising ShelfNetwork Stretched LCD Display 23.1 Inch For Supermarket Advertising Shelf



Available Sizes



Diagonal Viewing angle Contrast Aspect
ratio		 Resolution Display
area(mm)		 Dimension(mm) Luminance
7.36" 89/89/89/89 500:1   1280*400 178.56*55.8 192*70.6 400
16.4 85/85/80/80 1000:1 16:2.7 1366*230 409.7*69 431.4*92.8*14.5 700
16.8" 85/85/80/80 1000:1 16:4.4 1366*378 409.7*115.2 431.8*141 700
19.1" 85/85/80/80 1000:1 16:2.8 1920*338 476.6*84.4 497.4*109.5*14.5 700
19.7" 85/85/80/80 1000:1 16:5.2 1920*624 476.6*154.9 497.4*179.4*14.5
19.2" 85/85/80/80 1000:1 16:3.2 1920*384 476.6*96.3 497.4*120.8*14.5 700
21.9" 85/85/80/80 1000:1 16:6 1920*720 521.28*195.48 541.9*221*14.5 700
24.6" 85/85/80/80 1200:1 16:4.8 1920*578 597.9*180 625.4*210.2*17.5 700
23.9" 85/85/80/80 1200:1 16:3 1920*359 597.9*112 627.1*152.5*25.8 700
28" 89/89/89/89 5000:1 16:3 1920*360 698.4*131 729.3*167.3*19.2 600
28.8" 89/89/89/89 1200:1 16:4.5 1366*384 697.68*196.12 739*239.4*29 550
88/88/88/88 5000:1 16:4.5 1920*540 698.4*196.425 739*239.4*29 550
30" 88/88/88/88 3000:1 16:6 1366*512 697.68*261.5 739.1*339*29 750
38" 88/88/88/88 5000:1 16:4.5 1920*540 930.2*261.6 972*304*29 700
37.2" 89/89/89/89 5000:1 16:3 1920*360 927.94*174.42 972*218*24.8 700
36.8" 89/89/89/89 3000:1 16:3 1920*360 919.3*172.4 956.8*210.9*27 700
36.6" 89/89/89/89 3000:1 16:2.4 1920*290 919.3*139 956.9*176.5*27 550
41.5" 88/88/88/88 450:1 16:4.5 1920*540 1017.5*285.5 1057.5*326.5*29.7 770
40.8" 88/88/88/88 3000:1 16:3 1920*360 1018.1*191.2 1057.5*232.2*17.9 550
41.9" 89/89/89/89 3000:1 16:2 1920*247 1054.08*136 1092*175*24.8 700
43.8" 89/89/89/89 3000:1 16:4.38 1920*526 1073.78*294.5 1087.9*309 700
44.8" 89/89/89/89 3000:1 16:5.6 1920*675 1073.78*377.5 1113.9*418.7
48.5" 89/89/89/89 4000:1 16:3 1920*360 1209.6*226.8 1249.6*267.8*27 700
48" 89/89/89/89 4000:1 16:2.25 3840*540 1209.6*170 1250.6*212.1*29.7 400
49.5" 89/89/89/89 4000:1 16:4.5 3840*1080 1209.6*340.1 1250.6*382.2*29.7 620
89/89/89/89 4000:1 16:4.5 1920*540 1209.6*340.1 1250.6*382.2*29.7 700
47.95" 89/89/89/89 4000:1 16:1.98 1920*238 1209.6*150 1249.1*189.9*29.7 700
57.2" 89/89/89/89 4000:1 16:3 1920*364 1429*272.2 1470*314.2*29 700
57.5" 89/89/89/89 4000:1 16:3.375 1920*405 1428.4*301.2 1471.5*345.9*29 700
89/89/89/89 4000:1 16:3.375 1920*405 1428.4*301.2 1460.2*332.1*21 700
